Bluetooth Steering Wheel Controller User Manual For Head Unit



　
　
Introduction
1. “+”: Volume up
2. “-”: Volume down
3. “<”: Back to home interface;
4. “>”: MoveNext
5. “||◁”: Play or Pause
6. orange light: Flashing one time means power on;
Continuous flashing indicates waiting for pairing and connection.

Connection
Step 1. Download and install Multikey App.
1) Install “JY-3-C9-Launcher-V1.0”
2) Install “CarBlueContrlolv1”
　
Step 2. Open Multikey, click the “Check” button.
Step 3. Press any key on the MultiKey, car radio will automatically pair.
　

Notice: Firstly turn on music player, then you can use Multikey to choose Pause, Play, Next song.

Features
1. Effective communication range is up to 5 meters.
2. It will enter standby mode when there is no activity for 1 minute;
and quickly power back up once press any key.
3. The system power is designed with a CR2032 button cell battery.
Power-saving and extremely low power consumption. ( figure 1)
4. The structure of chain type which is easy to install and convenient for driving or riding. ( figure 2)
　
Figure 1
Figure 2
　
Specification
Battery Type: CR2032

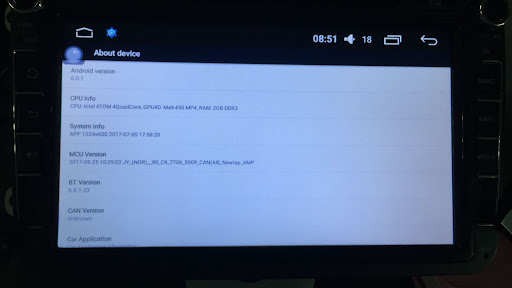

System Compatibility: Joying Android 6.0

FAQ:
Q1: Why do you need to press Multikey for twice, then it will run on car radio?
A: First action is to awaken “Multikey” and back to connect automatically. The second time will start operation.

Q2: Can a car radio connect to several “Multikey” devices?
A: No.

Q3:  Whether we need to pair Bluetooth again after replacing battery?
A: Yes, it will miss pairing information when power is off, so we need to pair it again.
　
Here will be a video on to operate the bluetooth steering wheel controller on the car , you can check for more details :

　
If you are also interested in the bluetooth steering wheel controller for your head unit , please place order .
Or you still have any other questions , please contact to europe@carjoying.com. we will help .
　
　
